Welcome to Shanghai Qiao Feng industrial co., LTD's website

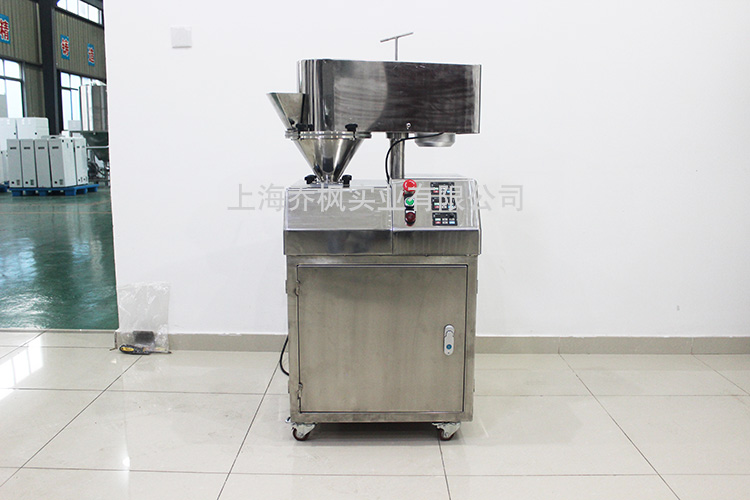

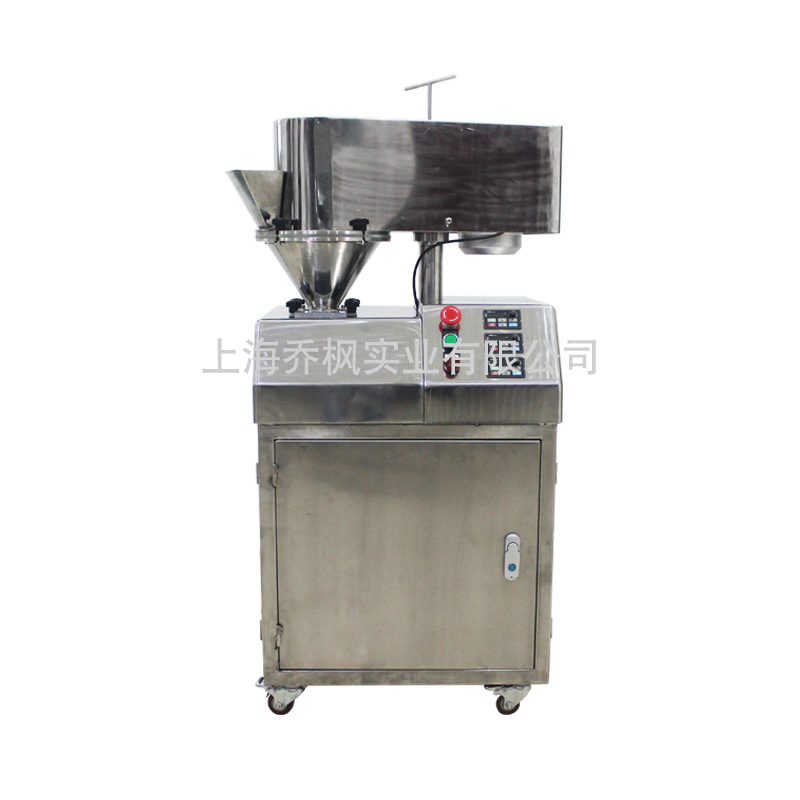

Experimental dry granulator machine
Device name: Experimental dry granulator
Equipment type: qfn - gk-70
Throughput: 20-60kg/h (support customized)
Test machine: Support test making experiment
Main uses:

Medicine: tablet pellet, capsule filling granule and so on.

Food: food manufacturing granules, seasoning granules, etc.

Plastics: all kinds of plastic forming granules.

Chemical industry: catalysts, pigments, detergents and other chemical raw materials and other particles.

Application scenario: Scientific research, chemical industry, food, pesticide, medicine, biological industry, etc.
Is it guaranteed? National three year warranty
Telephone: 17317246351
Detail

I. main uses:
Medicine: tablet pellet, capsule filling granule and so on.
Food: food manufacturing granules, seasoning granules, etc.
Plastics: all kinds of plastic forming granules.
Chemical industry: catalysts, pigments, detergents and other chemical raw materials and other particles.

Working principle: the machine is a new equipment that directly uses powder material to make granules from the crystal water in the material. The machine is novel and reasonable in structure, stable and reliable in performance, convenient in cleaning and maintenance. The granule made of this mechanism can be used as tablet agent, granule, capsule and so on. The machine is mainly used for granulation in pharmaceutical, food, chemical and other industries. It is especially suitable for granulation of materials which can not be solved by wet process.

Two, product characteristics:

1, dry powder particle density is uniform, solubility is good, the rate of granulation is high.
2. Special feeding structure ensures effective feeding.
3. Roll water circulation cooling ensures that there will be no phenomenon of material sticking.
4. There is no need for wetting agents such as water or ethanol, no need for secondary heating and drying, less process, high efficiency and low cost.
5, the use of advanced electro-hydraulic, simple and reliable operation, high degree of automation.
6. The sealing operation is free from contamination and meets the hygienic requirements of medicines.
7. It is especially suitable for granulation of materials which can not be solved by wet method.
Three, the product is actually taken:

Four, equipment type and parameters:


Model

Throughput

Feed grain size

Working pressure

Motor power

Outline size (length * width * height)

weight

gk-70

20-60kg/h

0.4-6mm

198kn

7.15kw

1380*850*2200mm

1600kg

gk-120

60 - 200kg / h.

0.4-6mm

294kn

13.75kw

1850*1100*2600mm

2000kg

gk-250

80 - 300 kg / h.

0.4-6mm

294kn

25kw

2080 * * 2920mm 1240

3000kg

Contact us


Tel: 17317246351

Mailbox: sales@qfn17.com

URL: http://www.spzwqaq.cn

Address: Shanghai fengxian canal north road no. 1185
